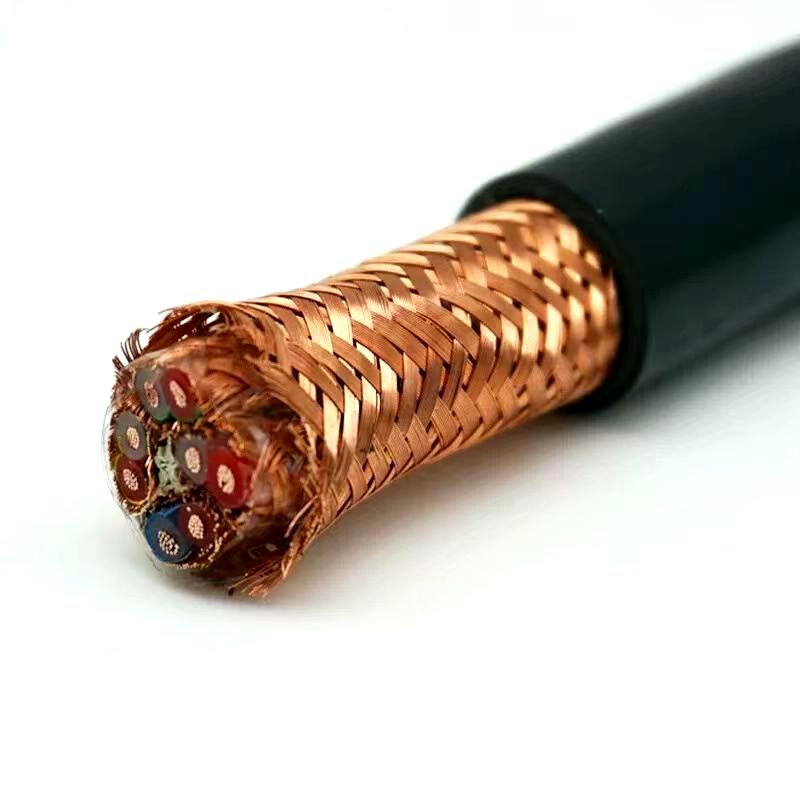

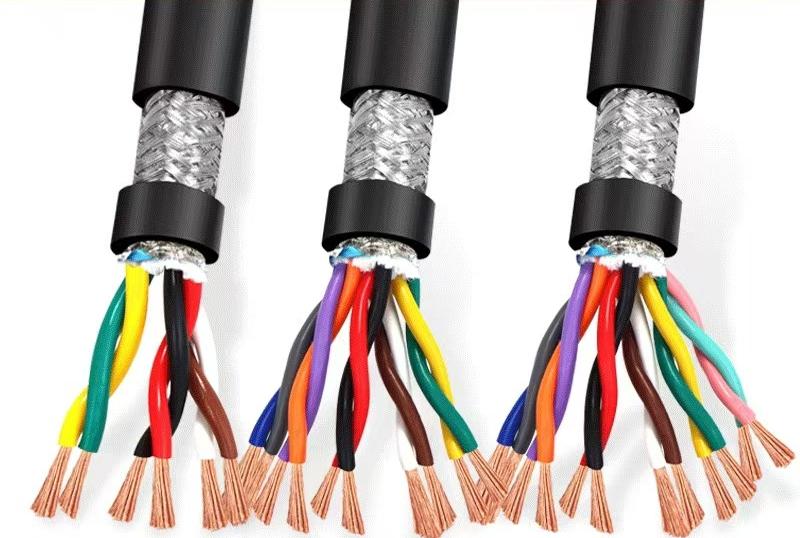

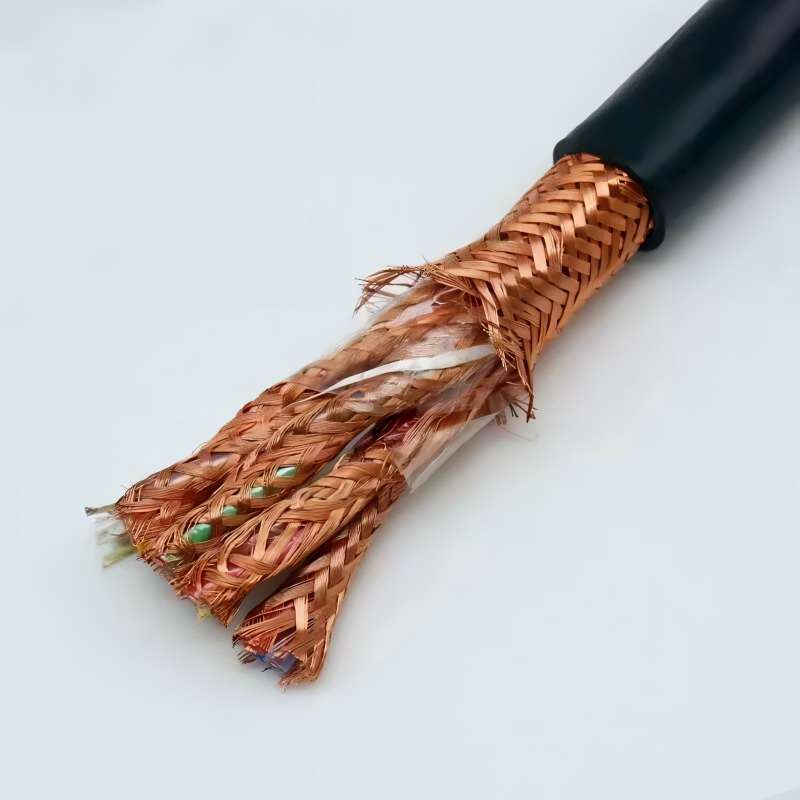

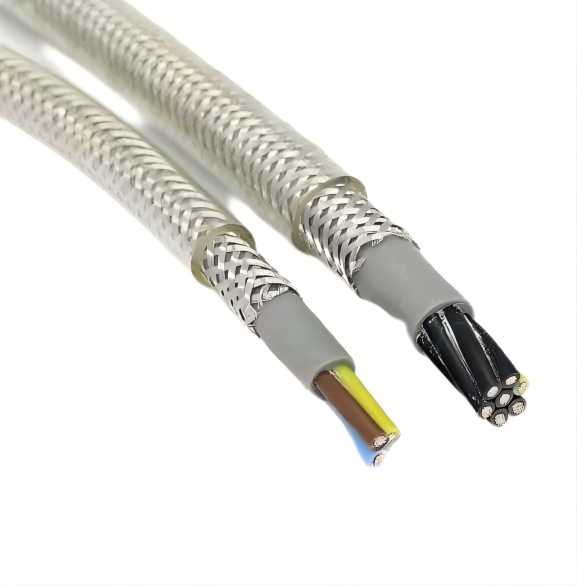

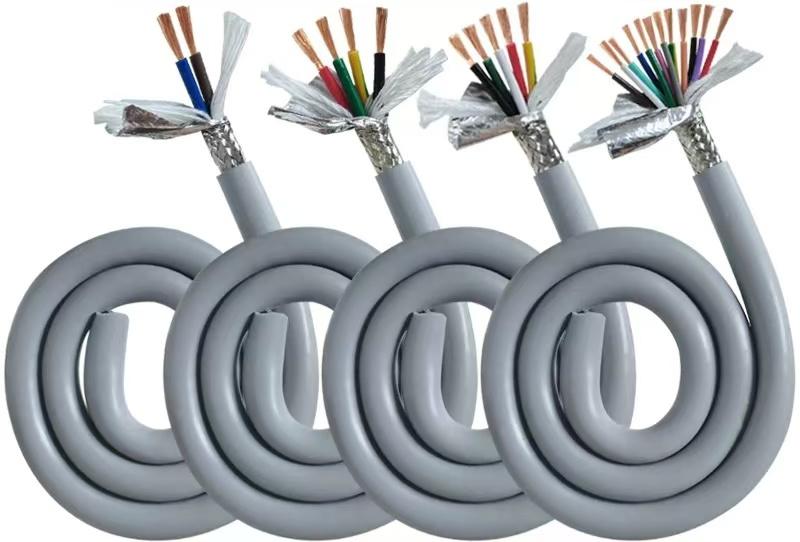

multi-core flexible shield instrument cable

Description

conductor: copper wire/ tinned copper wire

class 5, super flexible

insulation:XLPE/PE/PVC

shield: wire braided, al-foil

outer sheath:PVC/PE color: black, grey. blue

conductor size: 0.5 sq.mm- 4 sq.mm

Wire working temperature: 40˚C - + 70˚C

rated voltage:300/500V 450/750V

Standard IEC BS GB

Parameters

pairs number	conductor construction	conductor size	insulation	sheath
	no./mm	mm2	mm	mm
1	1/0.8	0.5	0.5	0.8
2	1/0.8	0.5	0.5	0.8
5	1/0.8	0.5	0.5	1.1
10	1/0.8	0.5	0.5	1.2
15	1/0.8	0.5	0.5	1.2
20	1/0.8	0.5	0.5	1.3
30	1/0.8	0.5	0.5	1.3
50	1/0.8	0.5	0.5	1.5
1	16/0.2	0.5	0.6	0.8
2	16/0.2	0.5	0.6	0.8
5	16/0.2	0.5	0.6	1.1
10	16/0.2	0.5	0.6	1.2
15	16/0.2	0.5	0.6	1.3
20	16/0.2	0.5	0.6	1.3
30	16/0.2	0.5	0.6	1.5
50	16/0.2	0.5	0.6	1.7
1	24/0.2	0.75	0.6	0.8
2	24/0.2	0.75	0.6	0.9
5	24/0.2	0.75	0.6	1.2
10	24/0.2	0.75	0.6	1.3
15	24/0.2	0.75	0.6	1.5
20	24/0.2	0.75	0.6	1.5
30	24/0.2	0.75	0.6	1.7
50	24/0.2	0.75	0.6	2
1	1/1.13	1	0.6	0.8
2	1/1.13	1	0.6	0.8
5	1/1.13	1	0.6	1.2
10	1/1.13	1	0.6	1.2
15	1/1.13	1	0.6	1.3
20	1/1.13	1	0.6	1.5
30	1/1.13	1	0.6	1.5
50	1/1.13	1	0.6	2
1	7/0.53	1.5	0.6	0.8
2	7/0.53	1.5	0.6	0.9
5	7/0.53	1.5	0.6	1.2
10	7/0.53	1.5	0.6	1.3
15	7/0.53	1.5	0.6	1.5
20	7/0.53	1.5	0.6	1.5
30	7/0.53	1.5	0.6	1.7
50	7/0.53	1.5	0.6	2

our team have good design experience, also OEM service for your products.

More details about instrument cable, welcome to contact Chanelectric in direct.
